KURZ® TTP-VARIAC. Length adjustable

The AC^sizer enables the surgeon to determine the required length of prosthesis with a high degree of precision. With this information the implant can be shortened to the desired length and – thanks to the patented clamping mechanism within the prosthesis head plate –  the head plate can be securely fixed to the implants stem.

Avoiding tension

It is known that the tension-sensitive annular ligament of the stapes footplate plays a significant role in the postoperative hearing outcome in ossiculoplasty. With the VARIAC system prosthesis as short as 0.75 mm Functional Length can be achieved, minimising the risk of unintentional tension.

Low inventory = low cost

One of the major advantages of the system is that is takes just two products to cover most requirements.

Made from Pure Titanium (ASTM F67 Medical Grade). MR conditional for the future: 7.0 Tesla (www.kurzmed.com)

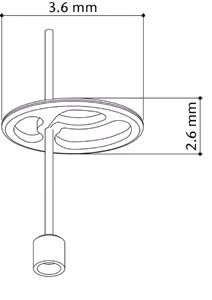

TTP-VARIAC Partial Prosthesis

• Adjustable between 1.75-4.50mm (in 0.25mm increments).
• Clamping mechanism directly within the head plate allows for shortest Functional Length of 0.75 mm
• Fenestrated head plate
• Conically shaped bell: optimally adapts to the stapes head
• Recessed slots allow adequate space for the stapedius tendon
• Precision measuring system for the intraoperative determination of the length of KURZ tympanoplasty prostheses:
  6 sizers for partial prostheses

‍

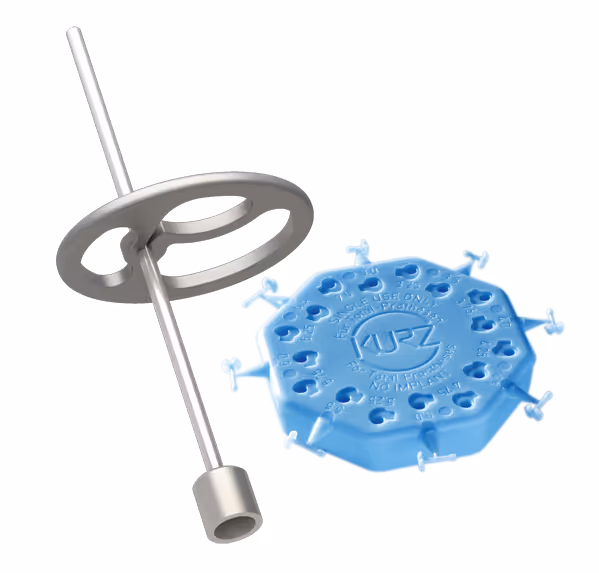

TTP-VARIAC Total Prosthesis

• Clamping mechanism directly within the head plate allows for shortest length of 3.0 mm
• Cannulated distal footing developed to give the prosthesis an excellent degree of stability.
• Adjustable between 3.0-7.0mm (in 0.25 increments) and is compatible with the popular OMEGA CONNECTOR.
• Precision measuring system for the intraoperative determination of the length of KURZ tympanoplasty prostheses: 8 sizers for total prosthesis

Both supplied sterile, the prostheses are supplied with their own sizer disk.

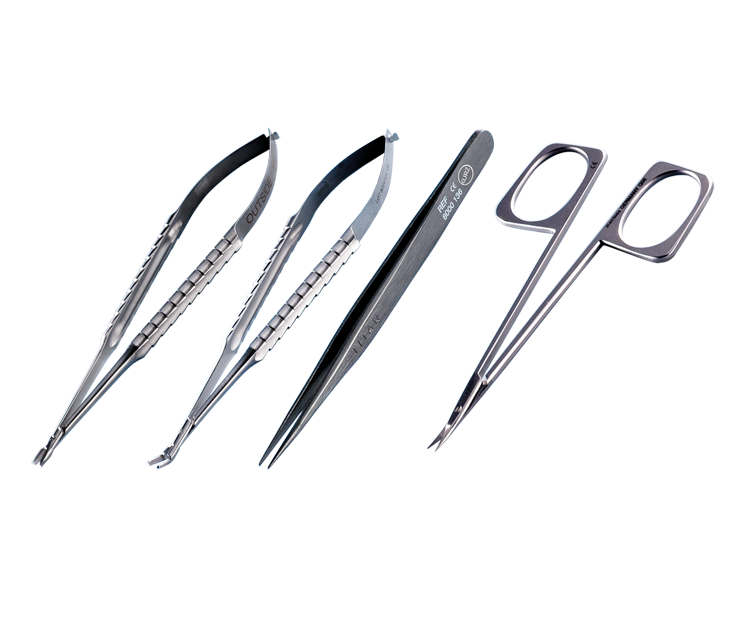

Important accessories:

The KURZ titanium micro closing forceps and stainless steel cutting forceps are required, whilst the titanium tweezers and micro scissors are optional. For more details click here

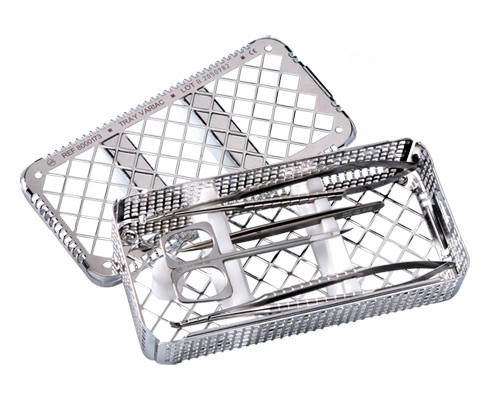

The set can be acquired with its own TTP-VARIAC tray to keep the set together during sterilisation.

‍
