Description

Optimized Fit

In a Total ossicular reconstruction, movements of the tympanic membrane can alter the position on an AERIAL implant on the stapes footplate. This can affect the acoustic transfer and ultimately patient outcomes. The OMEGA CONNECTOR is designed to compensate for these tympanic membrane movements and provide additional stability to KURZ Total Prostheses.

Flexible Joint Connection

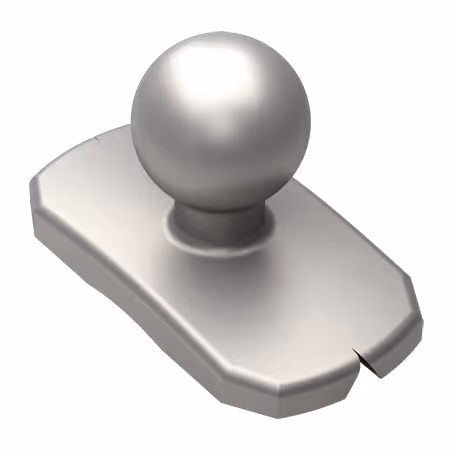

With sufficient footplate access, it increases the implants medial surface contact. The micro ball connects with the cannulated stem of the KURZ total prosthesis. In this way, it accommodates drum to headplate angles without prosthesis manipulations.

Stable Connection

To first place the OMEGA CONNECTOR into the middle ear an aspiration tip is ideally used. The cupped medial end of the total prosthesis is assembled with the OMEGA in situ, this creates a snug and stable fit between the two prostheses make fixation with adhesive unnecessary. The undersurface of the OMEGA CONNECTOR’s shoe has a longitudinally milled recess to compensate for footplate irregularity.

The Omega Connector creates a modular system for all the KURZ Total prostheses range.

Benefits Summary

• Increases medial surface contact of KURZ Total Prostheses
• Provides additional stability to KURZ Total Prostheses
• Compensates for tympanic membrane movements
• Accomodates drum to headplate angles without prosthesis manipulations
• Clinically evaluated
• Excellent biocompatibility

Ordering information

FL: Functional Length

Can be used with KURZ Total Prostheses with a circular hollow stem

Further information

For more information call us on 01264 332172, email info@CCMed.co.uk or complete our enquiry form.

Clinical Abstracts for the Ω Connector can be read here

All scientific abstracts and abstracts on others areas of Ossiculoplasty can be read here
