Description
Adequate fit, without paracentesis
The Trocar Ventilation Tube is easy to insert without prior paracentesis. The tympanic membrane is pierced with the trocar tip upon which the ventilation tube is mounted. Once the trocar has been extracted, the ideal size between the incision and ventilation tube ensures that the ventilation tube is optimally fitted in the tympanic membrane. Insertion can be conducted easily and quickly under local anaesthesia.
Large lumen for good ventilation
The comparatively large inner lumen of the TVT is an advantage, allowing aspiration of secretion directly after insertion, making it ideal for long-term ventilation.
Pure titanium
The TVT tubes are made of pure titanium providing excellent tissue tolerance.
The TVT is delivered mounted on a single use tracer tip. This tip is connected to the reusable stainless steel Tracer Handle
Key Features
- Characteristic design for insertion without prior paracentesis.
- Readily mounted on single use trocar tip.
- Particularly smooth surface.
- Comparatively large inner lumen.
- Pure Titanium or Gold Alloy.
- Trocar Handle made of stainless steel, sterilizable.
Key Benefits
- Easy to insert without prior paracentesis.
- Ideal size between the incision and ventilation tube.
- Optimal fit in the tympanic membrane.
- Also suited for long-term ventilation and drainage.
- Facilitates secretion discharge.
Ordering Informatio
| Material:

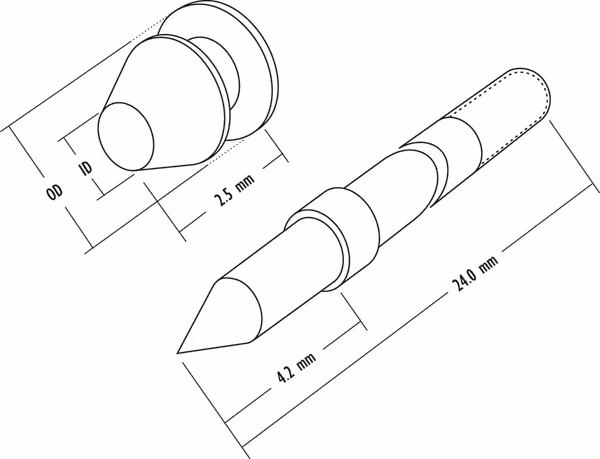

| ID mm | OD mm | Length mm | REF
|
| Gilded Silver Trocar Ventilation Tube | 1.25 | 2.80 | 2.50 | 1015 074 |
| Material:
| ID mm | OD mm | Length mm | REF |
| Pure Titanium (ASTM F67) Trocar Ventilation Tube | 1.25 | 2.80 | 2.50 | 1015 075 |
Packing unit 10 pieces/box
| Required Accessory Instrument | REF |
| Trocar Handle stainless steel, resterilizable | 8000 143 |
Detailed MRI informatio
