Description
Lightweight and finally balanced, the KURZ® TTP-Tuebingen Titanium Prostheses enables the surgeon to adapt the implant to the patients individual anatomy by bending. Furthermore, its design ensures fine weight distribution and optimal securement both during and after surgery.
The open head plate design, along with its slim stem allows for excellent intraoperative visibility.
Made from Pure Titanium (ASTM F67 Medical Grade). MR conditional for the future: 7.0 Tesla (www.kurzmed.com)
Ordering Information

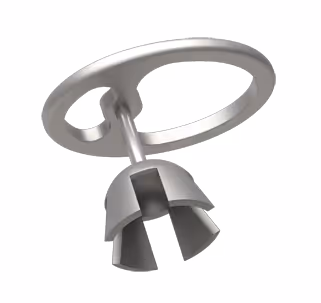

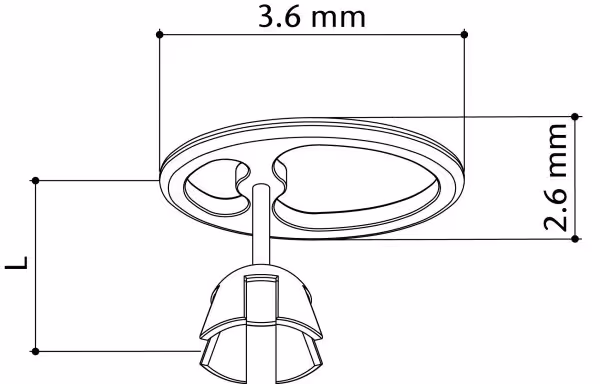

TTP Tuebingen BELL Partial Prosthesis
| LENGTH L (mm) | FL (mm) | REF |
| 1.75 | 0.75 | 1002 223 |
| 2.00 | 1.00 | 1002 224 |
| 2.25 | 1.25 | 1002 225 |
| 2.50 | 1.50 | 1002 226 |
| 2.75 | 1.75 | 1002 227 |
| 3.00 | 2.00 | 1002 228 |
| 3.25 | 2.25 | 1002 229 |
| 3.50 | 2.50 | 1002 230 |
Shaft Diameter: 0.2 mm

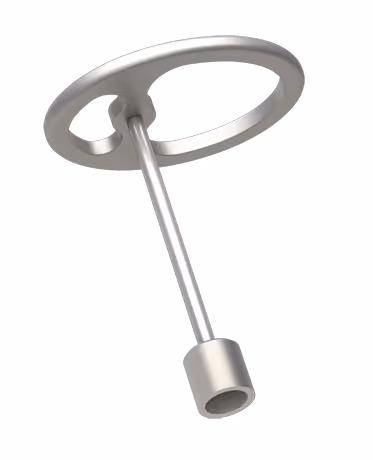

TTP Tuebingen AERIAL Total Prosthesis
| LENGTH L (mm) | REF |
| 3.00 | 1004 234 |
| 3.25 | 1004 235 |
| 3.50 | 1004 236 |
| 3.75 | 1004 237 |
| 4.00 | 1004 238 |
| 4.25 | 1004 239 |
| 4.50 | 1004 240 |
| 4.75 | 1004 241 |
| 5.00 | 1004 242 |
| 5.25 | 1004 243 |
| 5.50 | 1004 244 |
| 6.00 | 1004 246 |
| 6.50 | 1004 248 |
| 7.00 | 1004 249 |
Shaft Diameter: 0.2 mm
Further information
For more information call us on 01264 332172, email info@CCMed.co.uk or complete our enquiry form.

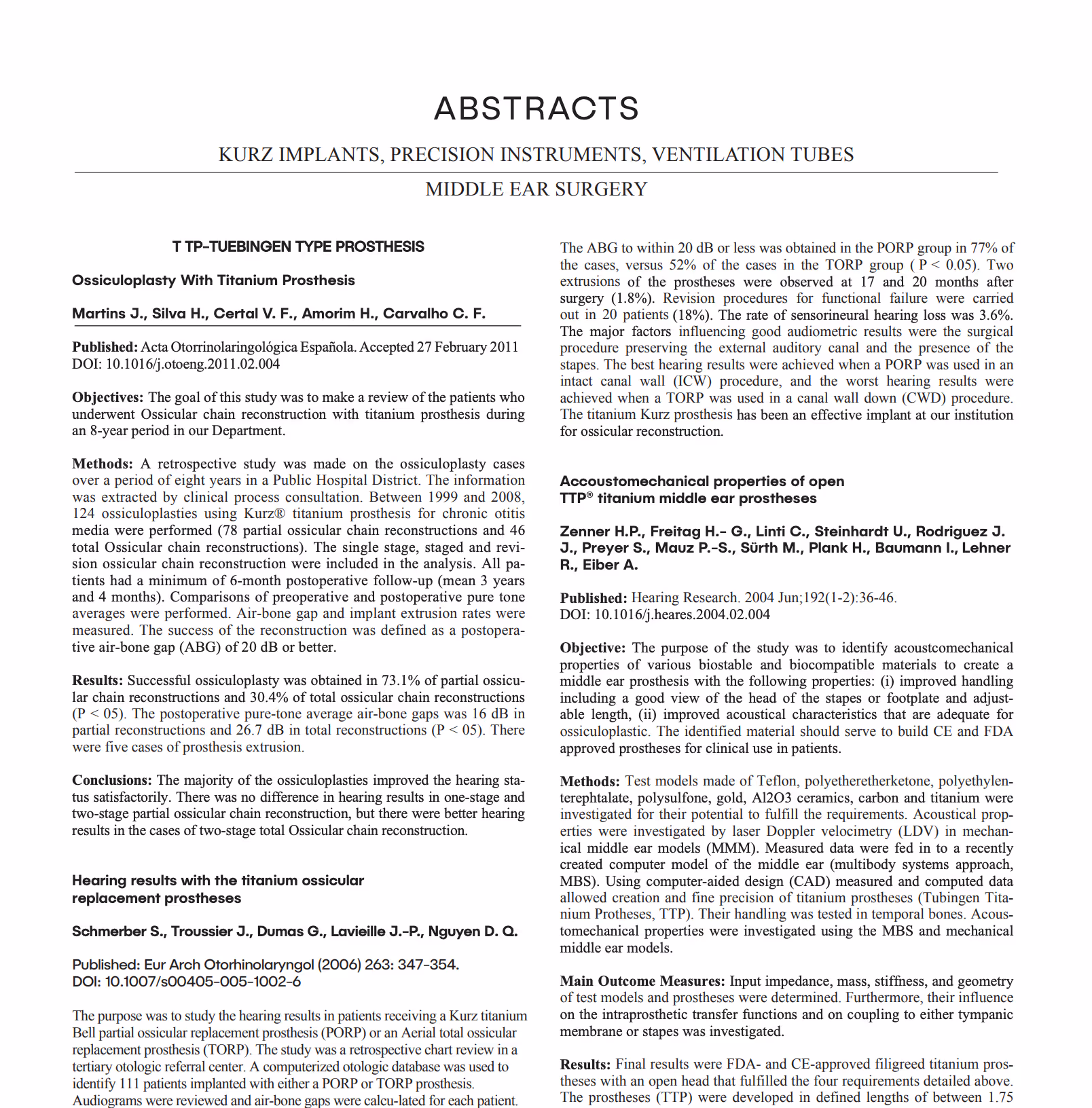

Clinical Abstracts for the TTP-Tuebingen can be read here
All scientific abstracts and abstracts on others areas of Ossiculoplasty can be read here
