Description
The KURZ® Munich Type implant feature a very characteristic head plate design. Shaped a little like an umbrella, the extended rounded edge helps to create a wide, atraumatic contact zone to the tympanic membrane. The large fenestrations provide good visibility during surgery.
Optimal coupling is also facilitated thanks to the cannulated distal footing of the AERIAL implant to help increase fluid adhesion to the stapes footplate, whilst the concave surface of the BELL makes direct contact with a broad range of anatomical structures.
Made from Pure Titanium (ASTM F67 Medical Grade). MR conditional for the future: 7.0 Tesla (www.kurzmed.com)
Ordering information

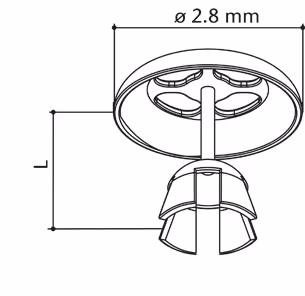

MUNICH LMU TYPE BELL Partial Prosthesis
| LENGTH L (mm) | FL(mm) | REF |
| 1.75 | 0.75 | 1002 073 |
| 2.00 | 1.00 | 1002 074 |
| 2.25 | 1.25 | 1002 075 |
| 2.50 | 1.50 | 1002 076 |
| 2.75 | 1.75 | 1002 077 |
| 3.00 | 2.00 | 1002 078 |
| 3.25 | 2.25 | 1002 079 |
| 3.50 | 2.50 | 1002 080 |
FL: Functional Length. Shaft Diameter: 0.2 mm

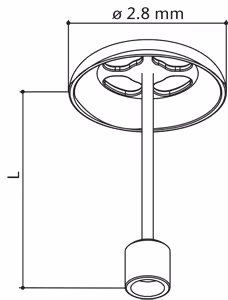

MUNICH LMU TYPE AERIAL Total Prosthesis
| LENGTH L (mm) | REF |
| 3.00 | 1004 074 |
| 3.25 | 1004 075 |
| 3.50 | 1004 076 |
| 3.75 | 1004 077 |
| 4.00 | 1004 078 |
| 4.25 | 1004 079 |
| 4.50 | 1004 080 |
| 4.75 | 1004 081 |
| 5.00 | 1004 082 |
| 5.25 | 1004 083 |
| 5.50 | 1004 084 |
| 6.00 | 1004 086 |
| 6.50 | 1004 088 |
| 7.00 | 1004 089 |
Shaft Diameter: 0.2 mm
Further information
For more information call us on 01264 332172, email info@CCMed.co.uk or complete our enquiry form.
