Description

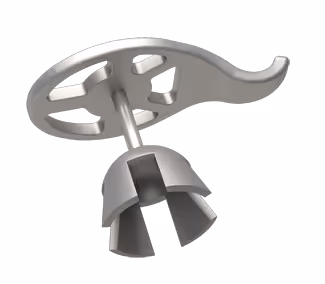

For those surgeons that want to preserve the malleus and help its stable coupling to the implant, the KURZ® MNP was developed.
The MNP’s concave recess helps to facilitate simultaneous contact between the malleus handle and tympanic membrane, thereby provide good stability. The slimmer profile and fenestrated head plate also provides good placement visibility during surgery.
Made from Pure Titanium (ASTM F67 Medical Grade). MR conditional for the future: 7.0 Tesla
Ordering information
MNP Partial Prosthesis
| LENGTH L (mm) | FL (mm) | REF |
| 1.75 | 0.75 | 1002 423 |
| 2.00 | 1.00 | 1002 424 |
| 2.25 | 1.25 | 1002 425 |
| 2.50 | 1.50 | 1002 426 |
| 2.75 | 1.75 | 1002 427 |
| 3.00 | 2.00 | 1002 428 |
| 3.25 | 2.25 | 1002 429 |
| 3.50 | 2.50 | 1002 430 |
FL: Functional Length
Shaft Diameter: 0.2 mm
MNP Total Prosthesis
| LENGTH L (mm) | REF |
| 3.00 | 1004 434 |
| 3.25 | 1004 435 |
| 3.50 | 1004 436 |
| 3.75 | 1004 437 |
| 4.00 | 1004 438 |
| 4.25 | 1004 439 |
| 4.50 | 1004 440 |
| 4.75 | 1004 441 |
| 5.00 | 1004 442 |
| 5.25 | 1004 443 |
| 5.50 | 1004 444 |
| 6.00 | 1004 446 |
| 6.50 | 1004 448 |
| 7.00 | 1004 449 |
Shaft Diameter: 0.2 mm
Further information
For more information call us on 01264 332172, email info@CCMed.co.uk or complete our enquiry form.
Clinical Abstracts for the MNP can be read here
All scientific abstracts and abstracts on others areas of Ossiculoplasty can be read here
